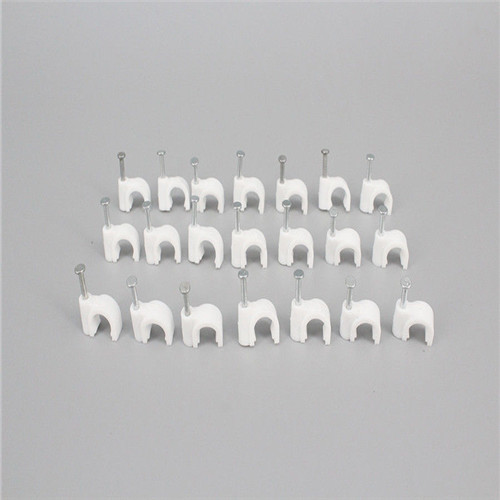

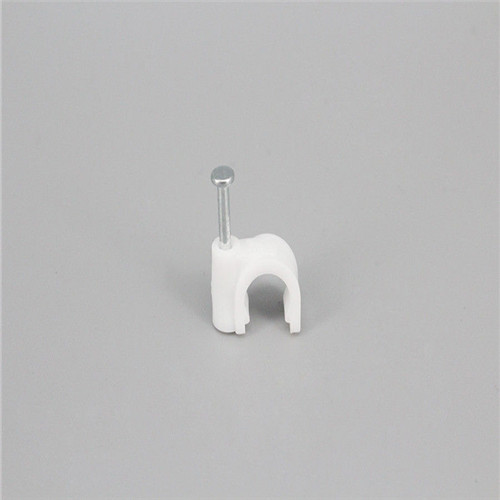

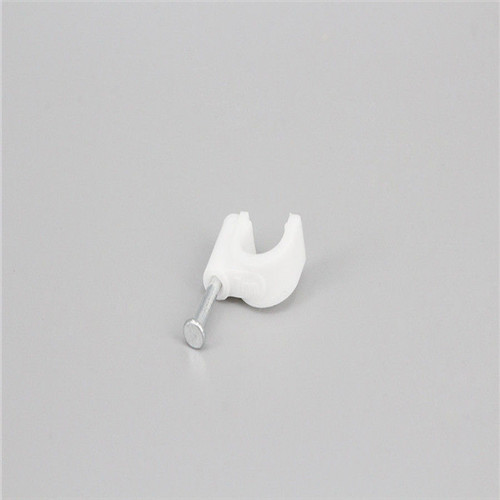

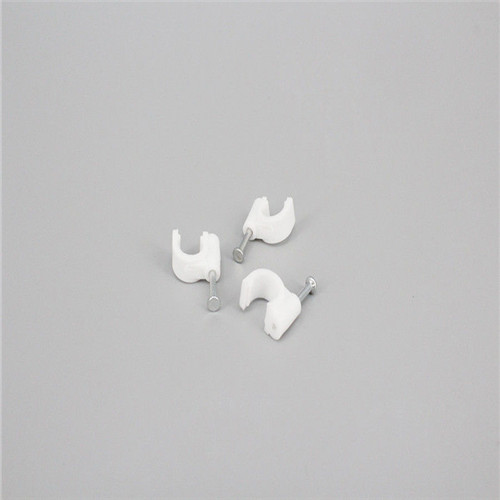

Round Cable Clips

High Quality Cable clips manufacturers & exporter - buy Round PE Cable Clip Wire and Cable Fixing Clip Plastic Clips from from manufacturer Wuhan MZ Electronic Co.,Ltd
  • China
  • MZ, OEM
  • CE
  • MZ0302
  • PE
  • 4-40mm
  • 3000bags
  • 100pcs/bag
  • in 7-15 working days upon the quantity
  • T/T, L/C, Western Union


Round Cable Clips


  • Type: Round Clips

  • Materials: PE and Steel Nails

  • Features: Fixable, good elasticity and shock resisting. Inserting type, nail attached in clips. Save time and cost

  • Size: 4-40 mm

  • Color: Natural(or white, standard color), UV black and other colors are available as requested


Specification

(if you can't find your interested size, pls contact us, these only part of size.)

Type

H(mm)

R(mm)

Nail size(mm)

4mm

5.3

4

1.7*15

5mm

6.5

5

1.7*15

6mm

8.1

6

1.7*17

7mm

8.7

7

1.8*19

8mm

9.6

8

1.9*21

9mm

10.7

9

2.0*22

10mm

11.7

10

2.05*25

12mm

12.8

12

2.05*27

14mm

14.9

14

2.4*32

16mm

16.9

16

2.5*35

18mm

20.8

18

2.5*37

20mm

23.6

20

2.8*42

22mm

25.0

22

2.8*48

25mm

27.7

25

3.2*48

30mm

33.1

30

3.2*53

35mm

36.6

35

3.2*58

40mm

45.2

40

3.4*60
