PG Series Nylon Cable Glands

PG series Cable Glands manufacturers & exporter - buy Hot sale IP68 waterproof nylon NPT PG Metric G thread cable glands from manufacturer Wuhan MZ Electronic Co.,Ltd

Place of Origin:China
Brand Name:MZ, OEM
Certification:CE
Model Number:MZ0202
Materials:UL Nylon 66
MOQ:3000bags
Packing:100pcs/bag
Delivery Time:in 7-15 working days upon the quantity
Payment Term:T/T, L/C, Western Union

Description
Feedback

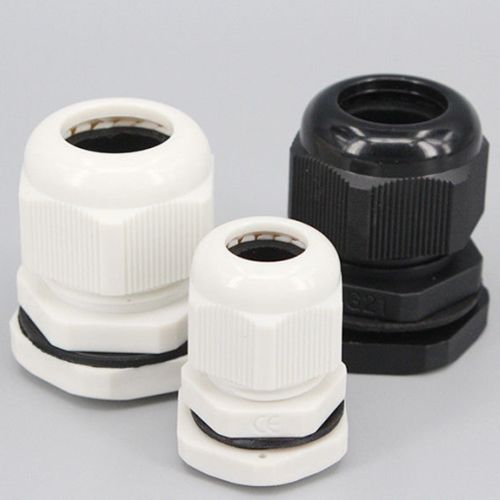

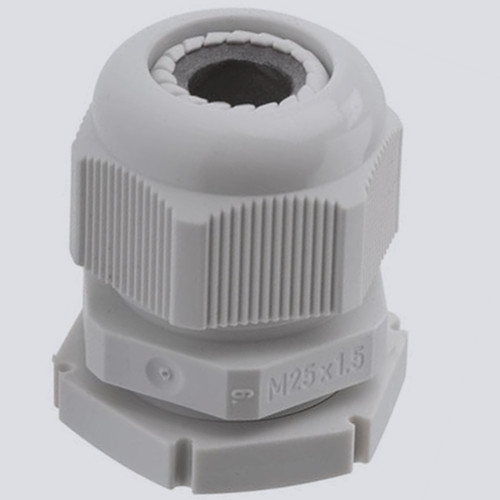

PG Series Nylon Cable Glands

Type: Nylon Glands

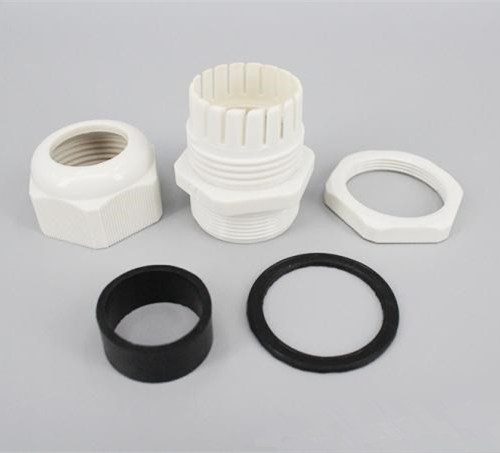

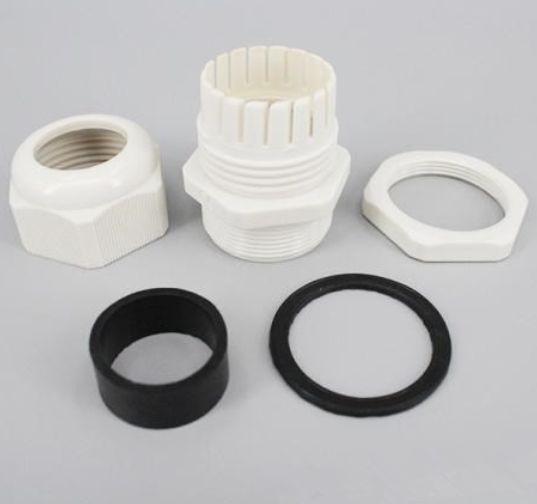

Materials: UL approved nylon PA66(Flammability UL94V-2)for A,C,E parts(accept to customize flammability UL 94V-0 ).EPDM rubber for B,D parts

IP Degree: IP68

Operation temperature:-40℃ to 100℃

Feature:The special design for claw and seal nut can hold cable steady,the usage range of cable diameter wider,it’s harder to pull cable out.Resistant to salt water,weak acid,alcohol,oil,grease,etc.
Color: Black, grey, white and other colors

Specification

Remark:Special specification can be customized.

Type	Cable diameter (mm)	Thread diameter C1(mm)	Thread length C2 (mm)	Wrench diameter(mm)
PG7	3-6.5	12.5	8	16	Standard type
PG9	4-8	15.2	8	19
PG11	5-10	18.6	8	22
PG13.5	6-11	20.4	10	24
PG16	10-13	22.5	10	27
PG19	12-15	24	10	27
PG21	13-18	28.3	10	33
PG25	16-21	30	11	35
PG29	18-25	37	12	42
PG36	22-32	47	14	52
PG42	32-38	54	14	60
PG48	37-44	59.3	15	64
PG63	42-50	71	28	77
PG7	2-5	12.5	8	16	Rubber ring thicken type
PG9	2-6	15.2	8	19
PG11	3-7	18.6	8	22
PG13.5	5-9	20.4	10	24
PG16	7-12	22.5	10	27
PG19	10-13	24	10	27
PG21	9-16	28.3	10	33
PG25	13-18	30	11	35
PG29	13-20	37	12	42
PG36	20-26	47	14	52
PG42	25-31	54	14	60
PG48	29-35	59.3	15	64
PG63	32-40	71	28	77
