Product Center

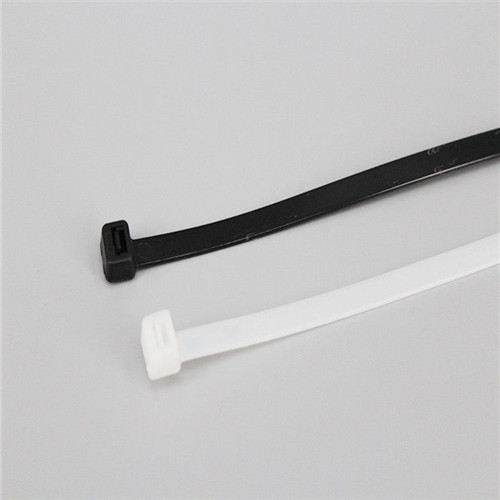

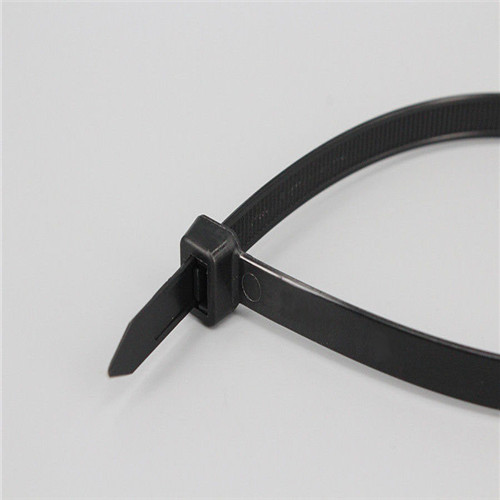

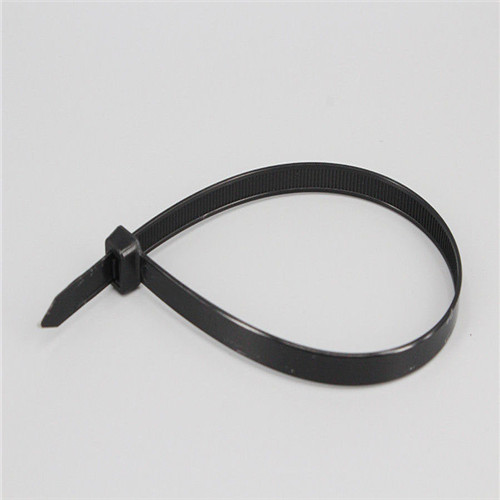

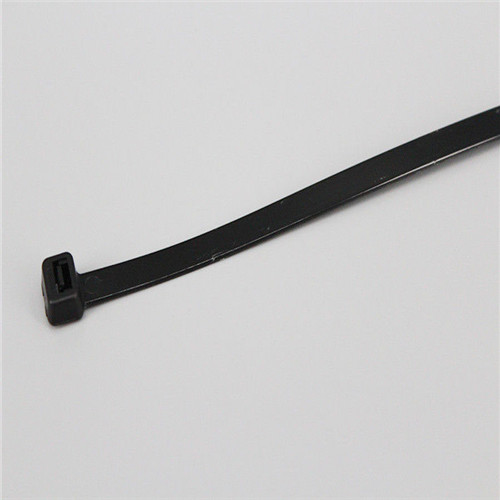

9.0x450 mm Self-locking Nylon Cable Tie With UL RoHs

9.0x450mm nylon Cable Ties are high-strength self-locking fasteners designed for securing large cable bundles, wiring harnesses, and equipment assemblies. The 9.0 mm wide strap provides a strong fastening profile, while the 450 mm length offers sufficient wrapping reach for larger cable groups without moving to an ultra-long 500 mm or 1000 mm tie. With a tensile strength of 175 lbs, this size is suitable for applications requiring higher mechanical load capacity.

Manufactured from UL-approved Nylon 66, these heavy-duty nylon Cable Ties provide good mechanical strength, electrical insulation, heat resistance, anti-aging performance, and resistance to corrosion. The specified bundle diameter range is approximately 8–118 mm. The integrated self-locking head allows quick installation without a separate buckle or fastening component, while the material is UL 94 V-2 rated and suitable for an operating temperature range of -35°C to 85°C.

The 9.0x450mm size is suitable for industrial wiring, electrical equipment, machinery, control cabinets, power and communication cable assemblies, automotive harnesses, and other large-bundle cable management applications. Natural, UV black, and other colors are available, with MZ or OEM packaging and branding options.

Key Features

• 9.0 mm × 450 mm heavy-duty nylon cable tie

• 175 lbs tensile strength for high-load fastening applications

• UL-approved Nylon 66 material

• Suitable for cable bundles approximately 8–118 mm in diameter

• Self-locking head for quick and secure installation

• UL 94 V-2 rated with -35°C to 85°C operating temperature

• Good electrical insulation and resistance to heat, aging, and corrosion

• Natural, UV black, and custom colors available

Applications

9.0x450mm nylon Cable Ties are suitable for large wire bundles and cable harnesses in industrial machinery, electrical installations, control cabinets, telecommunications, automotive equipment, and general equipment assembly. They are particularly useful when a high-strength 9.0 mm strap is required together with a medium-long 450 mm wrapping length.

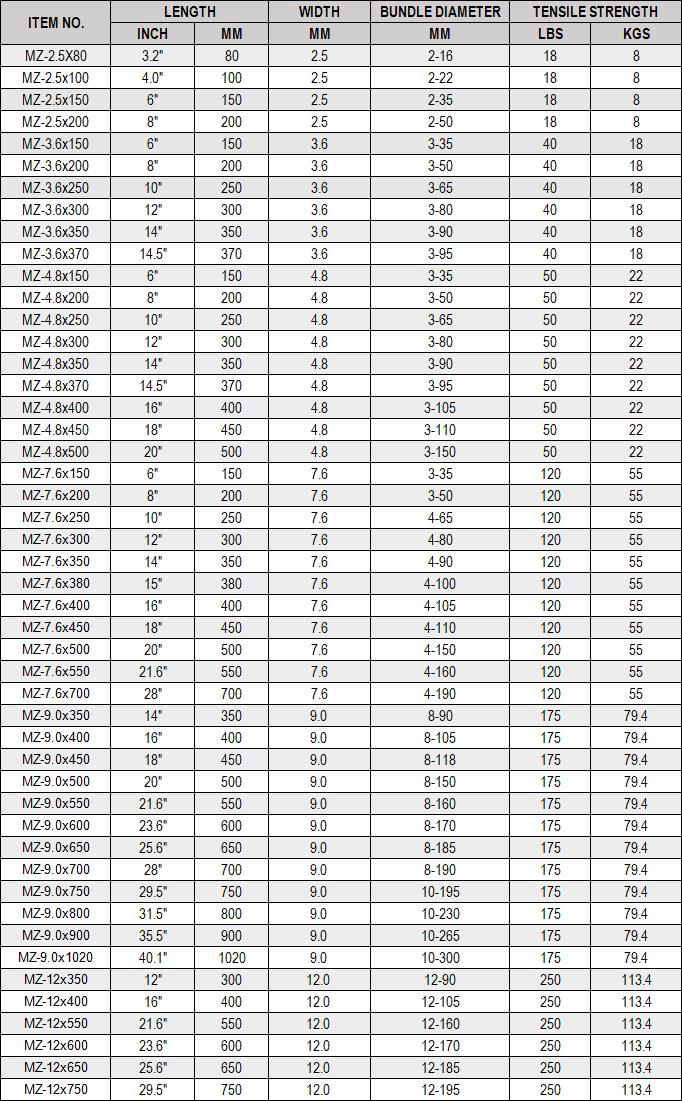

Specification

(Other sizes available upon  customers request)
