Nylon Cable Glands

Name:Nylon Cable Glands
Place of Origin:China
Brand Name:MZ, OEM
Certification:CE
Model Number:MZ0202
Materials:UL Nylon 66
MOQ:3000bags
Packing:100pcs/bag
Delivery Time:in 7-15 working days upon the quantity
Payment Term:T/T, L/C, Western Union

PRODUCT DETAILS

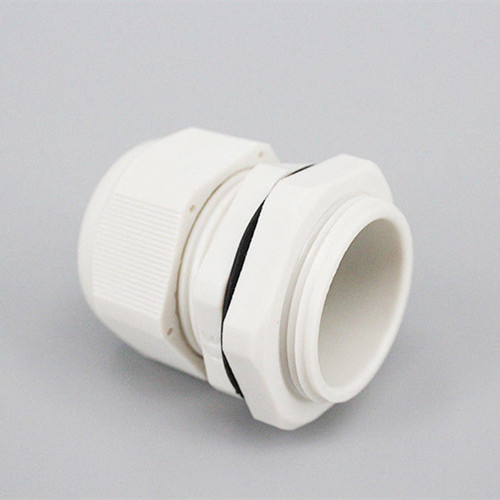

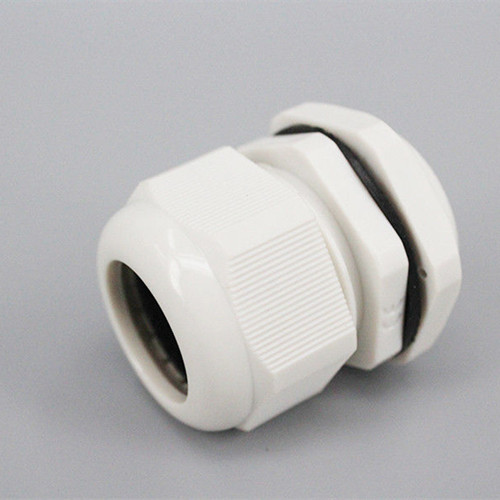

Nylon Cable Glands

  • Type: Nylon Glands

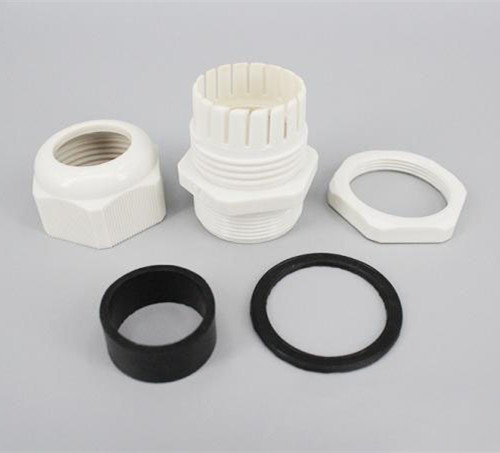

  • Materials: UL approved nylon PA66(Flammability UL94V-2)for A,C,E parts(accept to customize flammability UL 94V-0 ).EPDM rubber for B,D parts
  • IP Degree: IP68
  • Operation temperature:-40℃ to 100℃

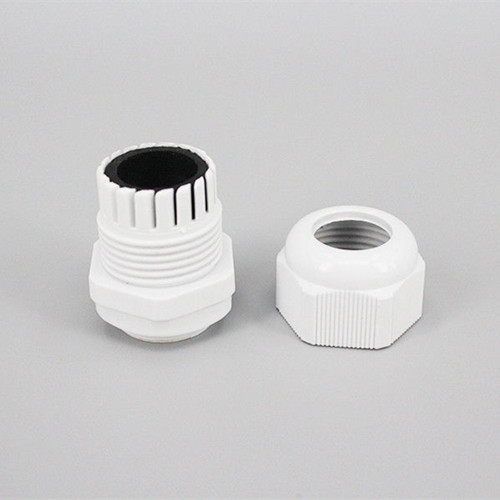

  • Feature:The special design for claw and seal nut can hold cable steady,the usage range of cable diameter wider,its harder to pull cable out.Resistant to salt water,weak acid,alcohol,oil,grease,etc.
  • Color: Black, grey, white and other colors

Specification

Remark:Special specification can be customized.

Type

Cable diameter (mm)

Thread diameter C1(mm)

Thread length C2 (mm)

Wrench diameter(mm)



PG7

3-6.5

12.5

8

16

Standard type

PG9

4-8

15.2

8

19

PG11

5-10

18.6

8

22

PG13.5

6-11

20.4

10

24

PG16

10-13

22.5

10

27

PG19

12-15

24

10

27

PG21

13-18

28.3

10

33

PG25

16-21

30

11

35

PG29

18-25

37

12

42

PG36

22-32

47

14

52

PG42

32-38

54

14

60

PG48

37-44

59.3

15

64

PG63

42-50

71

28

77

PG7

2-5

12.5

8

16

Rubber ring thicken type

PG9

2-6

15.2

8

19

PG11

3-7

18.6

8

22

PG13.5

5-9

20.4

10

24

PG16

7-12

22.5

10

27

PG19

10-13

24

10

27

PG21

9-16

28.3

10

33

PG25

13-18

30

11

35

PG29

13-20

37

12

42

PG36

20-26

47

14

52

PG42

25-31

54

14

60

PG48

29-35

59.3

15

64

PG63

32-40

71

28

77



Type

Cable diameter (mm)

Thread diameter C1(mm)

Thread length C2 (mm)

Wrench diameter (mm)



MG12

4.5-8

12

9

19

Standard type

MG16

6-10

16

15

22

MG20

9-14

20

15

27

MG25

13-18

25

15

33

MG32

18-25

32

15

41

MG40

24-30

40

20

50

MG50

30-40

50

23

62

MG63

40-50

63

24

75

MG12

3-5.3

12

9

19

Rubber ring thicken type

MG16

4-7

16

15

22

MG20

6-11

20

15

27

MG25

10-16

25

15

33

MG32

15-22

32

15

41

MG40

20-25

40

20

50

MG50

26-32

50

23

62

MG63

36-48

63

24

75
